PROLIGHTS SMARTDISKPACK

Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.

Features:

Battery powered and wireless DMX control for fast deployment and accurate control

Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects

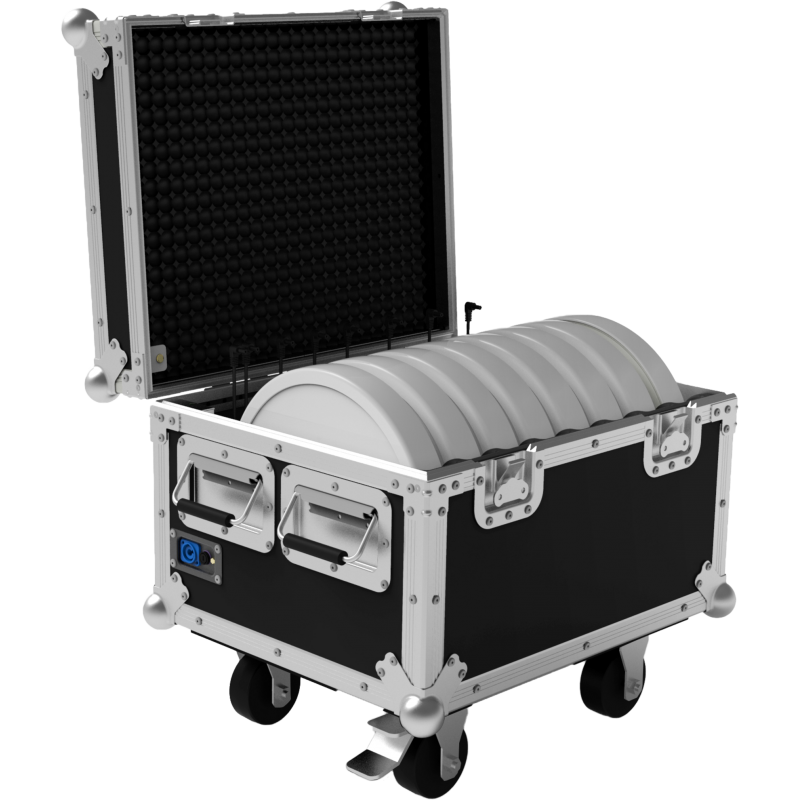

Available in a SMARTDISK PACK featuring 8 lights with accessories in an case with foam shell

LIGHT SOURCE

Source: 39x0,25W RGB + Warm White

CCT: 2.800 K ~ 6.000K

Source life expectancy: > 30.000 h

OPTICS

Beam angle: 360° to light up tables and 25° to light up objects on top

COLOUR SYSTEM

Colour mixing: RGBW / FC

Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

FX generator: adjustable foreground/background colour, index, speed, direction

Static colour mode: selection of static colour

Manual colour mode: manual adjustment of colour

BODY

Body: sturdy policarbonate body

Body colour: white

CONTROL

Protocols: W-DMX

DMX channels: 4 / 8 / 17 / 165channel

Pixel control: pixel2pixel control

W-DMX: included, wireless solution receiver

Display: LCD display

Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

IR: infrared sensor controlled by remote

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer

Dimmer curves: selectable dimming modes available

Strobe / shutter: 1 - 30 Hz, electronic

Operating temperature: -10° ~ +45°

ELECTRICAL

Max power consumption: 19,9W

BATTERY

Battery: 4,4 Ah - 11,1V lithium

Estimated battery life in colour change mode up to: 15h

Estimated battery life in single colour mode up to: 24h

Estimated battery life in full-mode up to: 8h

Re-charge connection: power cable

Re-charge time: 5h/max

Battery status: shown on display

PHYSICAL

Data connection: W-DMX receiver

IP rating: 54

Dimensions (WxHxD): 300x40x300mm

Weight: 1,62kg
