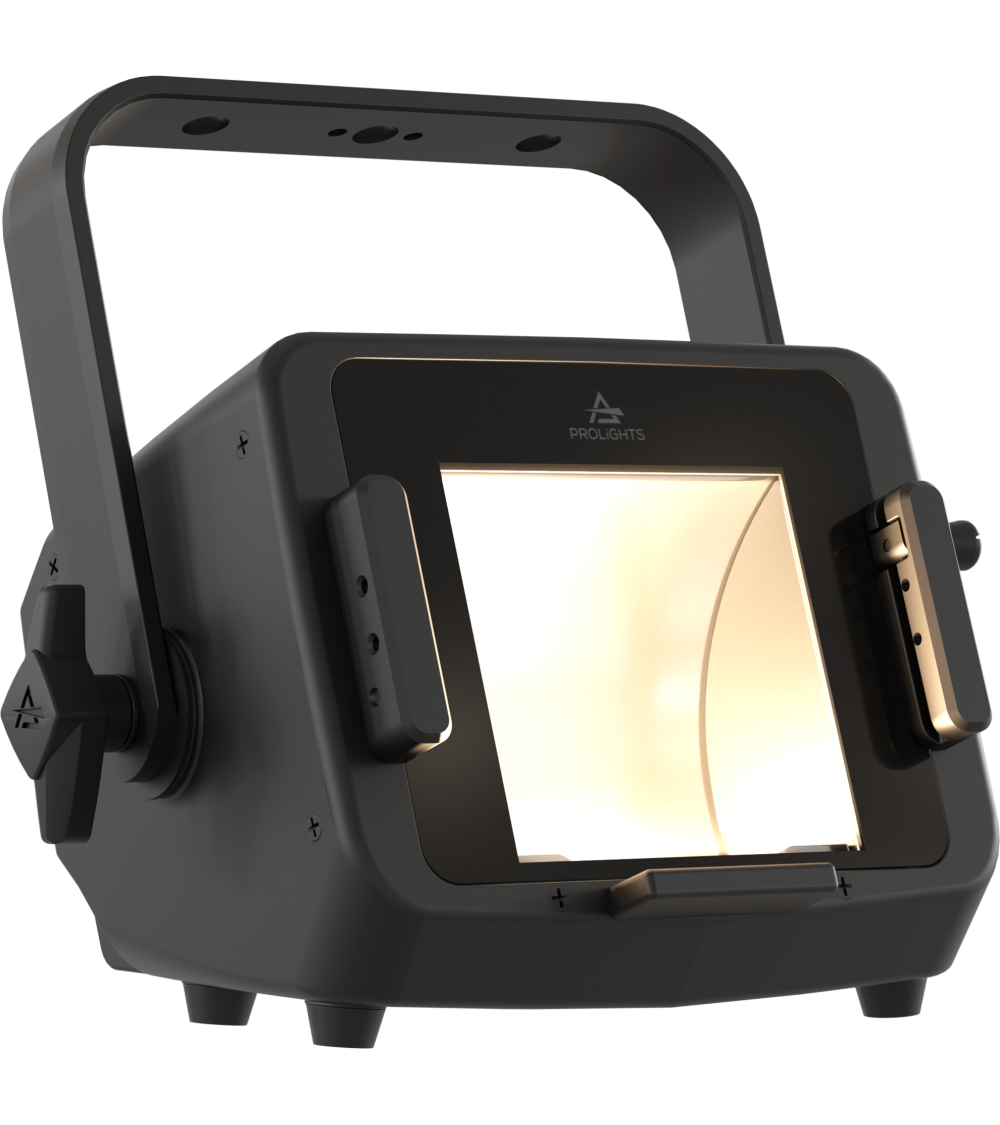

EclExpo Flood150VW

EclExpo Flood150VW is a compact, high-performance LED floodlight designed as a modern replacement for traditional CDM, HMI, and tungsten floods. Tailored for trade shows, theaters, or use as a work light, it brings timeless elegance and modern innovation into one powerful package.

Equipped with a custom 150W Variable White LED source and an asymmetric reflector, it offers a smooth indirect beam spread of 100° horizontal x 60° vertical, ideal for large-area coverage without glare. The floodlight provides high-quality white light reproduction across a broad CCT range from 2,700K to 6,500K, with excellent CRI, TLCI, and TM30 metrics.

Main Features:

• 150W Variable White LED source (2,700K – 6,500K)
• Asymmetric beam: 100° (H) x 60° (V)
• Exceptional light quality: CRI > 94, TLCI > 96, TM30 Rf > 92
• Silent active cooling – ideal for noise-sensitive environments
• Manual or remote control: DMX512, RDM, optional Wireless CRMX/W-DMX
• Onboard intuitive 2-knob interface for standalone use

Technical Specifications:

Light Source

• Source: 150W Variable White LED
• CCT: 2,700K – 6,500K
• Luminous Flux: 6,956 lm @2,700K; 9,733 lm @6,500K; 8,598 lm @full
• Lux @5m: 72 lx (2,700K); 99 lx (6,500K); 91 lx (full)
• CRI: 95.1 (2,700K); 95.3 (6,500K); 94.4 (full)
• TLCI: 97 (2,700K); 96 (6,500K); 98 (full)
• TM30: Rf > 92, Rg < 102
• LED lifespan: > 20,000 hours

Optics

• Beam Angle: 100° horizontal x 60° vertical
• Optic Type: Pure aluminum (99.6%) asymmetrical reflector

Colour System

• Mixing: Tunable White
• CCT Control: Via DMX + white presets

Dynamic Effects

• 16-bit dimming resolution
• Built-in static, manual and auto modes
• 4 dimmer curves

Control

• Protocols: DMX512, RDM, optional CRMX/W-DMX
• DMX channels: 1 / 2 / 3 / 5 / 11
• Display: Graphic UI
• Stand-alone: 2-rotary knob interface
• Firmware upgrade: via UPBOXPRO/UPBOX1

Electronics

• Power: 100–240V AC, 50/60 Hz
• Max Power Draw: 175W
• Standby Power: 4.5W @230V
• Power Factor: > 0.99
• PWM Frequency: Selectable 600 – 25,000 Hz

Physical

• IP Rating: IP20
• Cooling: Active silent operation
• Mounting: Bracket for hanging or floor
• Connections: XLR 5p DMX In/Out, powerCON TRUE1 In/Out (IP65)
• Size (WxHxD): 283 x 273 x 176 mm
• Weight: 3.2 kg

Certifications

• CE, UKCA, RCM, cTUVus, FCC

In the Box

• 1 × EclExpo Flood150VW
• 1 × 1.5m power cable (bare end – powerCON TRUE1 IP65)
• 1 × User Manual
